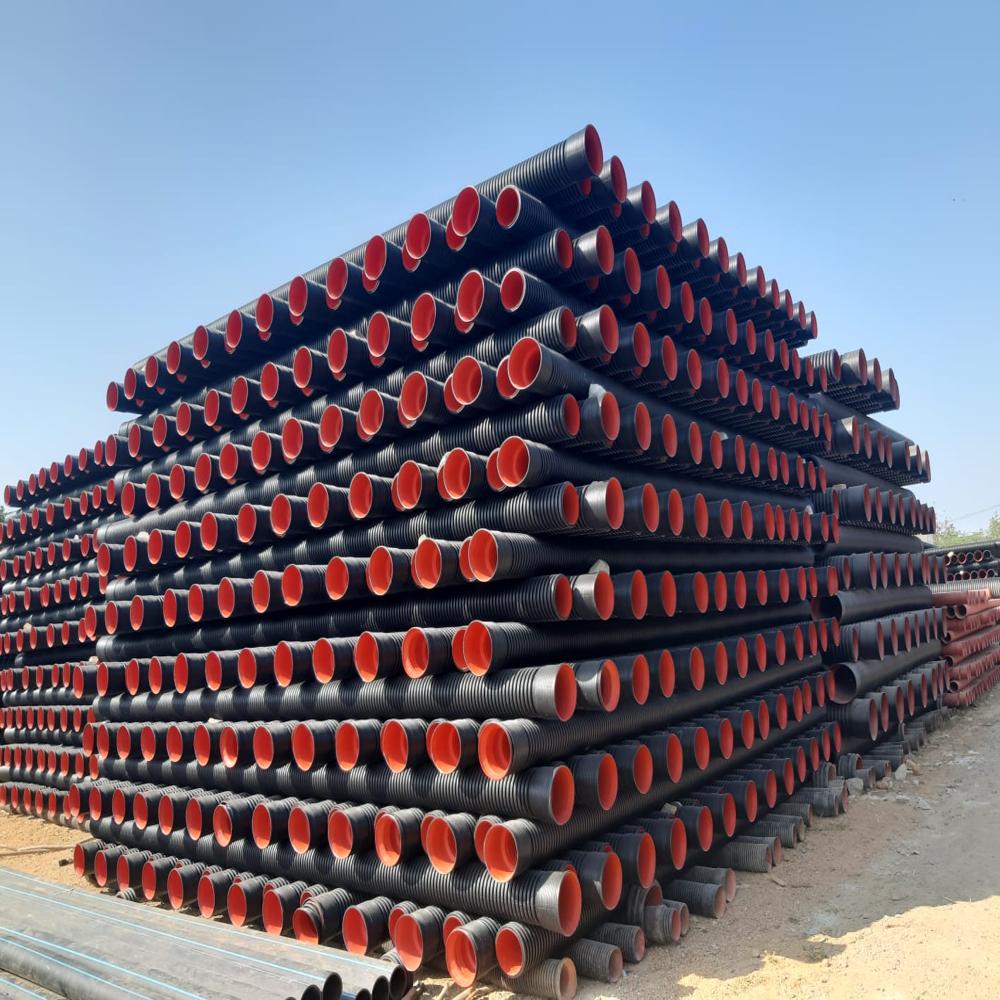

DWC Pipe

Name: DWC Pipe
Brand: JK POLYEXTRUSION
Price: 215.0 INR
Availability: InStock

Price 215.0 INR/ Meter

Get a Price/Quote

DWC Pipe Specification

Application
Underground cable protection, drainage systems, sewerage, rainwater harvesting, road works

End Protector
Integral socket with rubber ring or coupler

Tolerance
50 Meter

Product Type
Other

Type
Other

Shape
Round

Connection
Push fit / Coupler joints

Standard
IS 16098 Part 2 / DIN 16961

Diameter
Available in 40mm to 1200mm sizes

Thickness
Varies with diameter, generally 2mm to 5mm

Length
6 meters standard length

Color
Black (outer) with orange/red (inner lining)

Outer Surface
Corrugated

Chemical Resistance
Excellent

Fire Resistance
Self extinguishing

Service Life
75-100 years under normal conditions

Installation Method
Direct burial, slip-in joint

UV Resistant
Yes

Flexibility
High, suitable for curved laying

Temperature Range
-10C to +60C

Water Absorption
<0.01%

Material
High Density Polyethylene (HDPE)

Load Bearing Capacity
High, suitable for vehicular traffic load (SN 4 / SN 8 rating)

Inner Surface
Smooth

DWC Pipe Trade Information

Minimum Order Quantity
50 Meter

Delivery Time
7 Days

About DWC Pipe

Inner Diameter	150 mm
Pipe Length	6 m
Ring Stiffness	SN 8
Length of Pipe	6 m
Wall Type	Double Wall
Outer Diameter	150 mm
Application	Sewer Line, Subsoil Drainage
Type	SN8 DWC HDPE pipe
Material	HDPE
Pipe Grade	SN8
Pipe Brand	JK Polyextrusion

IS 16098 PART2.
Flexible Double Wall HDPE Drain pipes.
Heavy Duty Underground Corrugated Pipes.
DWC Pipes for Sewerage Systems.
DWC Pipes for Electrical Cable Protections.
Cable Duct DWC Pipes.

Superior Performance in Underground Applications

DWC pipes made of high density polyethylene are trusted for their excellent chemical resistance and high load-bearing capacity, making them perfect for underground cable protection, sewerage, and drainage. Their corrugated design withstands vehicular loads and challenging soil conditions, while the UV resistance ensures reliable longevity even in exposed areas.

Efficient Installation and Flexible Use

The slip-in joint design and push-fit or coupler connectors enable quick, hassle-free installation with minimal equipment. Their inherent flexibility allows for easy handling and laying along curved pathways, adapting well to a variety of infrastructure projects, including roads and rainwater harvesting systems.

Long-Lasting, Low Maintenance Solution

With a service life ranging from 75 to 100 years under normal conditions, HDPE DWC pipes require very little maintenance. Their smooth inner lining reduces friction, minimizing blockages and ensuring consistent flow, while the self-extinguishing property adds a measure of safety in case of fire exposure.

FAQ's of DWC Pipe:

Q: How are HDPE DWC pipes installed for underground applications?

A: HDPE DWC pipes can be installed by direct burial using the slip-in joint method with integral sockets and rubber rings or push-fit couplers. Their lightweight structure and flexibility allow for easy placement, even along curved routes, reducing installation time and labor costs.

Q: What are the primary benefits of using DWC pipes for drainage and cable protection?

A: DWC pipes provide high chemical and UV resistance, robust load-bearing capacity (SN 4/SN 8), and minimal water absorption (<0.01%), ensuring the integrity of underground systems. Their smooth inner surfaces enhance flow, while the corrugated outer wall offers strength against heavy vehicular traffic.

Q: When should I choose DWC pipes over conventional piping systems?

A: You should opt for DWC pipes when your project requires resilience against harsh chemicals, exposure to UV, flexibility for curved installations, and durability to withstand vehicular loads and ground settlements, particularly in underground and roadwork applications.

Q: Where can DWC pipes be used most effectively?

A: DWC pipes are suitable for underground cable protection, stormwater and rainwater harvesting systems, sewerage networks, and roadworks where high load-bearing and corrosion resistance are essential. They can be used in both urban and rural infrastructure projects.

Q: What standards do these DWC pipes conform to?

A: These pipes comply with Indian Standard IS 16098 Part 2 and German DIN 16961, ensuring they meet stringent quality, strength, and durability requirements vital for demanding civil and industrial projects.

Q: How does the pipe's structure contribute to its load-bearing capability?

A: The double wall design-smooth inner surface for flow efficiency and corrugated outer surface for strength-allows the pipe to bear heavy loads, including those from vehicular traffic, without compromising structural integrity.
